Ürün ayrıntıları

Evde Ürünler

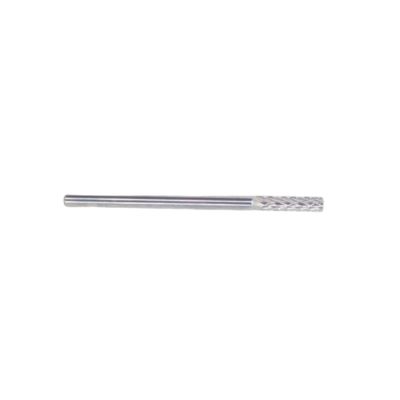

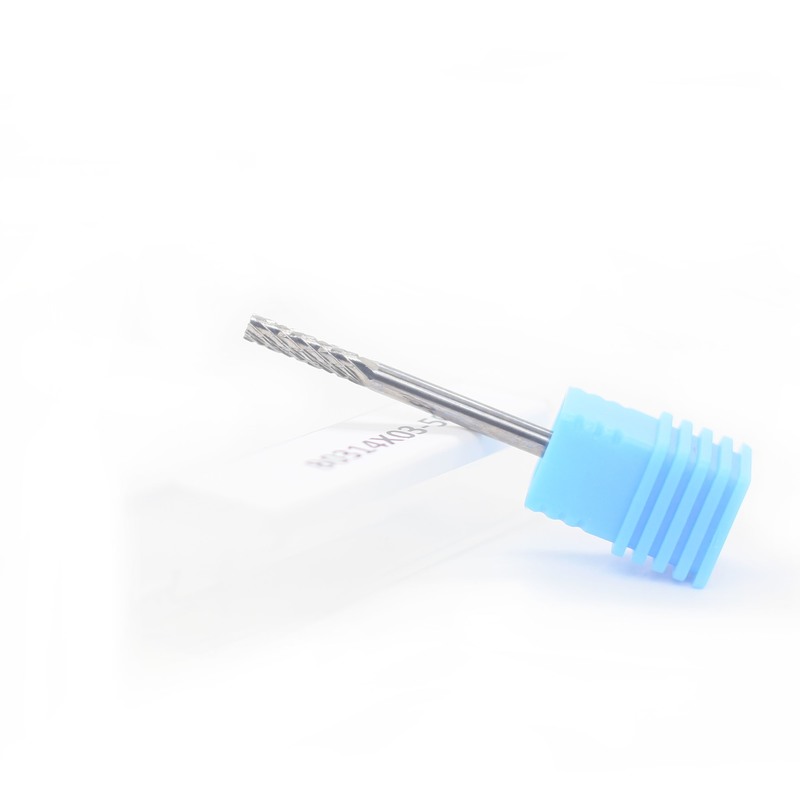

B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut

Marka Adı:	BABOS
Model Numarası:	B0304X03-50
Adedi:	20 adet
fiyat:	pazarlık edilebilir
Ödeme Şartları:	L/C, D/A, D/P, T/T, Western Union
Tedarik Yeteneği:	Ayda 10,0000 adet

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Malzeme:

Tungsten karbür

Şekil:

Silindirik Yarıçap

Kesim Çapı:

3 mm

Kesme Uzunluğu:

14 mm

Şaft çapı:

3 mm

Toplam uzunluk:

50 mm

Flüt tipi:

Standart Çift Kesim

Uygunluk::

İş Parçasının İşleme Yüzey Profili

Uygulama:

Çapak alma, şekillendirme ve bitirme

Paket Miktarı:

1 Adet

Maks Rpm:

50.000

Ambalaj bilgileri:

Plastik kutu

Ürün Tanımı

SB Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut

Description:

This SB Cylindrical End Cut Solid Carbide Burrs features an 3mm diameter with a 14mm cutting length, designed for die correction works. Other dimensions can also be customized.

B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut 0

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3mm

Length of Flute: 14mm

Shank Diameter: 3mm

OAL:50mm

Cut Type: Standard Double Cut

Available Shapes(A-N)

SA: Cylindrical (Without End Cut)
SB: Cylindrical With End Cut
SC: Cylindrical Ball Nose(Cylindrical Radius End)
SD: Ball Shape
SE: Oval Shape
SF: Tree RadiusShape
SG: Tree Point Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape(Taper Radius End)
SM: Cone Shape
SN: Inverted Cone Shape

Other Available Sizes Related to Type B Cylindrical End Cut Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm)	Cutter Dia. (mm)	Legth of Cut (mm)	Overall Length (mm)	Tool No.	The Combination of Head and Shank
d2	d1	l2	l1	Tool No.	The Combination of Head and Shank
3	1.5	6	38	B1506	Solid
	2	11	38	B0211	Solid
	2.5	12	38	B2512	Solid
	3	13	38	B0313	Solid
	4	13	51	B0413	Brazed
	5	13	51	B0513	Brazed
	6	13	51	B0613	Brazed
6	6	16	63	B0616	Brazed
	6	25	65	B0625	Solid
	8	20	65	B0820	Brazed
	10	20	70	B1020	Brazed
	11	25	70	B1125	Brazed
	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
8	12	25	70	B1225	Brazed
	16	25	70	B1625	Brazed
	19	25	70	B1925	Brazed
	25	25	70	B2525	Brazed
Inch Standard
3/8''	7/8"	1"	2-3/4"	SB-8	Brazed
1/8''	1/16"	1/4"	1-1/2"	SB-41	Solid
1/8''	1/8"	9/16"	1-1/2"	SB-43	Solid
1/4''	5/32"	5/8"	2"	SB-13	Solid
	3/16"	5/8"	2''	SB-14	Solid
	1/4"	5/8"	2''	SB-1	Solid
	1/4"	1"	2''	SB-1L	Solid
	3/8"	3/4''	2-1/2"	SB-3	Brazed
	7/16"	1"	2-3/4"	SB-4	Brazed
	1/2"	1"	2-3/4"	SB-5	Brazed
	5/8"	1"	2-3/4"	SB-6	Brazed
	3/4"	1"	2-3/4"	SB-7	Brazed
	1"	1"	2-3/4"	SB-9	Brazed

Customization:

Please send us the drawings or other important information if you need non-standard carbide burrs.
Please contact us if you need more information about type B burrs or other shapes of burrs.
OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

DIAMOND CUT(D)
